Mobile Powder-Refilling Machines Model UP 07

guarantee a dust-free and rapid check on the customer's premises.
The most economical method for all expert testing services.

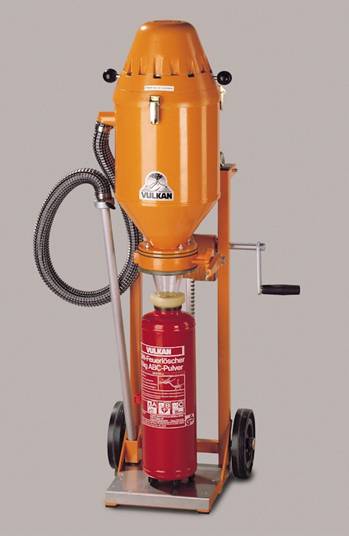

Model UP 07-6


This, the smallest model, is very handle thanks to its compact dimensions
and can be used anywhere.
Two big transportation wheels permit the machine to be moved to wherever it is needed. There are also two sliding gear wheels at the handle so that it can be accommodated into any vehicle without problem.


The filter cleaning is per-formed by reversing the air current.
Technical Data:
Performance:
approx. 7 - 12 kg/min.

Powder consumption:
 230 V, single-phase, 50 Hz
Weight:
approx. 34 kg
Transport dimensions:
450 x 450 x 900 mm





Discharge of old powder
 and filling in to plastic bags.

Refilling from one extinguisher
to an other

Emptying of wheeled extinguishers
 with storage drum and preliminary separator VA230









Technische Daten UP 07-6



Filling output:

UP 07-6



6-kg-container

15

pcs./h

12-kg-container

8

pcs./h

50-kg-container

2

pcs./h

250-kg-container

--

pcs./h

Conveying capacity

140

kg/h

Storage capacity

12

kg

Filter range

0,50

mē

Reversing

counter air manual



Compressor type

radial compressor



Suction performance

max. 190

mbar

Motor performance

1,0

kW

Operating time

60 %

ED

Electric supply

230 V, 1 Ph, 50 Hz



Dimension: W x D

450 x 450

mm

H min./max

900/1490

mm

Weight

34

kg

Paint

orange (RAL 2003)

powder- coated
