Stationary Powder-Filling Machines Model UP15
 This versatile workshop machine convinces with its fully
developed construction and its wide-spread application

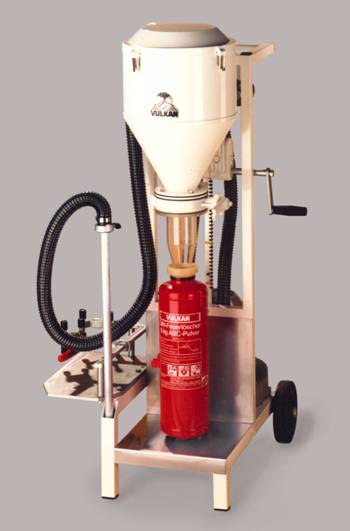

Model UP 15-5
Workshop machine for filling
and checking powder extinguishers
with 1-50 kg content.
Two large gum wheels which
make possible an easy transport
of the machine.

Because of the very strong
laid out extract fan and the
high-grade technical conception
it is the ideal machine for all
larger checking services and
works fire brigades.

 Technical Data:
Suction:
 approx. 12 - 17 kg/min.
Power consumption:
400 V, three-phase, 50 Hz
Weight:
approx. 70 kg
Dimensions:
500 x 800 x 1570 mm





Technical Data:



Filling output:

UP15-5
6-kg-container

40

 pcs./h
12-kg-container

25

 pcs./h
50-kg-container

6

 pcs./h
250-kg-container

1

 pcs./h
Conveying capacity

300

 kg/h
Storage capacity

12

 kg
Filter range

1,10

 mē

Reversing

counter air

Blower type

gas ring compressor
Suction performance

max. 220

 mbar

Motor performance

1,5

kW

Operating time

100 %

ED

Electric supply

400 V, 3 Ph, 50 60 Cy
Dimension: W x D

500 x 800

 mm
H min./max

1250/1570

 mm
Weight

70

 kg

Paint

White (RAL 9010)

powdercoated



Working position of powder refilling machine model UP15-5





Refilling from one extinguisher
to an other



New filling of extinguishers

place the powder storing container or storing sack on to the balance,
and suction the required quantity of powder by means of the suction pipe into the extinguisher to be filled.

Discharge of old powder
 and filling in to plastic bags







Emptying of wheeled extinguishers
with storage drum and preliminary separator VA230

New filling of wheeled extinguishers
 with preliminary separator VA230
